Description
The loyal companion for everyday tasks
The ST chain hoist programme ranks among the most distinctive and comprehensive on offer worldwide. It is strong, reliable and modest when it comes to maintenance and energy consumption. The modular system enables innumerable combinations of the subassemblies for customised solutions. With 6 variants available, the ST chain hoist covers the lifting capacity range from 125 kg to 6,300 kg. The portfolio is supplemented by special models such as the STK extra short headroom trolley and the STD dual chain hoist for long material and lifting beams.
The chain hoists are also available in explosion-proof design for Zone 1, Zone 21 and Zone 22.
- Extensive chain hoist range for lifting capacities from 125 kg to 6,300 kg
- Suspension directly from the chain guide of solid cast iron
- Easy inspection and maintenance of the chain drive thanks to overmounted drive shaft
- Extremely short and compact construction ensures that space can be utilised to the maximum
- High standard classification in accordance with ISO
- Modern Kanban production, available fast
- Available as an option in explosion protected design complying with ATEX and IECEx

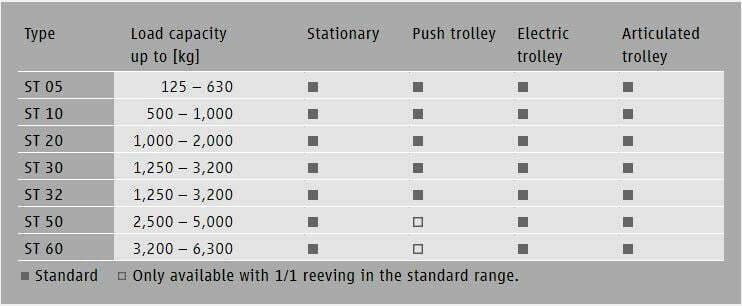

Models
The different models and trolley variants allow not only a wide variety of uses, but also very individualised solutions tailored to specific requirements.
Push trolley
In standard version, the ST 05 and ST 10 1/1 chain hoists are suspended by eye or hook from the smooth-running push trolleys. A rigid connection with the chain hoist is possible on request. This rigid connection is standard in the ST 20 to ST 60 chain hoists. The push trolley does not affect the low headroom of the hoist. Optional wheel arresters make your workplace safer.

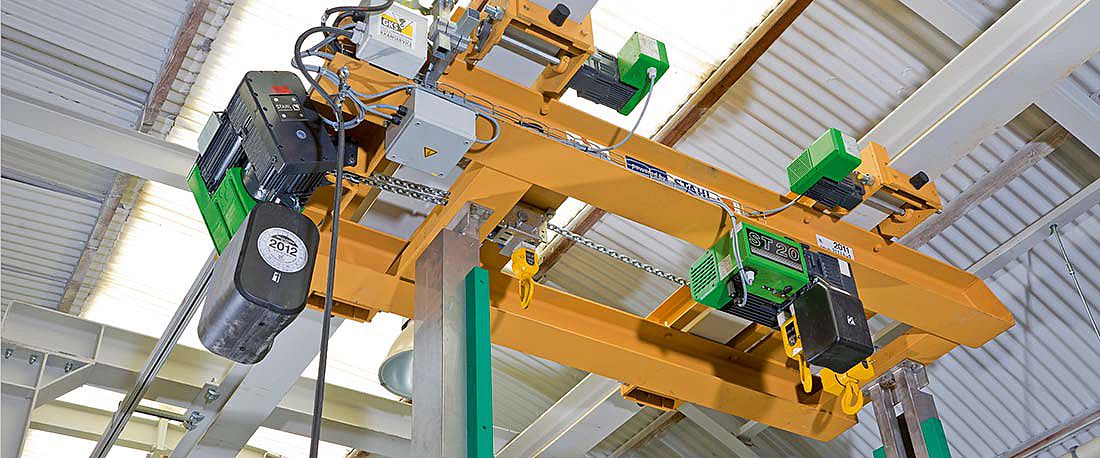

DKE articulated trolley
The articulated trolley is available for frequent travel around bends and narrow radii. Depending on radius of bend, runway flange width or application it is equipped with one or two travel motors. The lateral guide rollers cause minimum wear. The articulated trolley is designed for load capacities up to 6,300 kg.

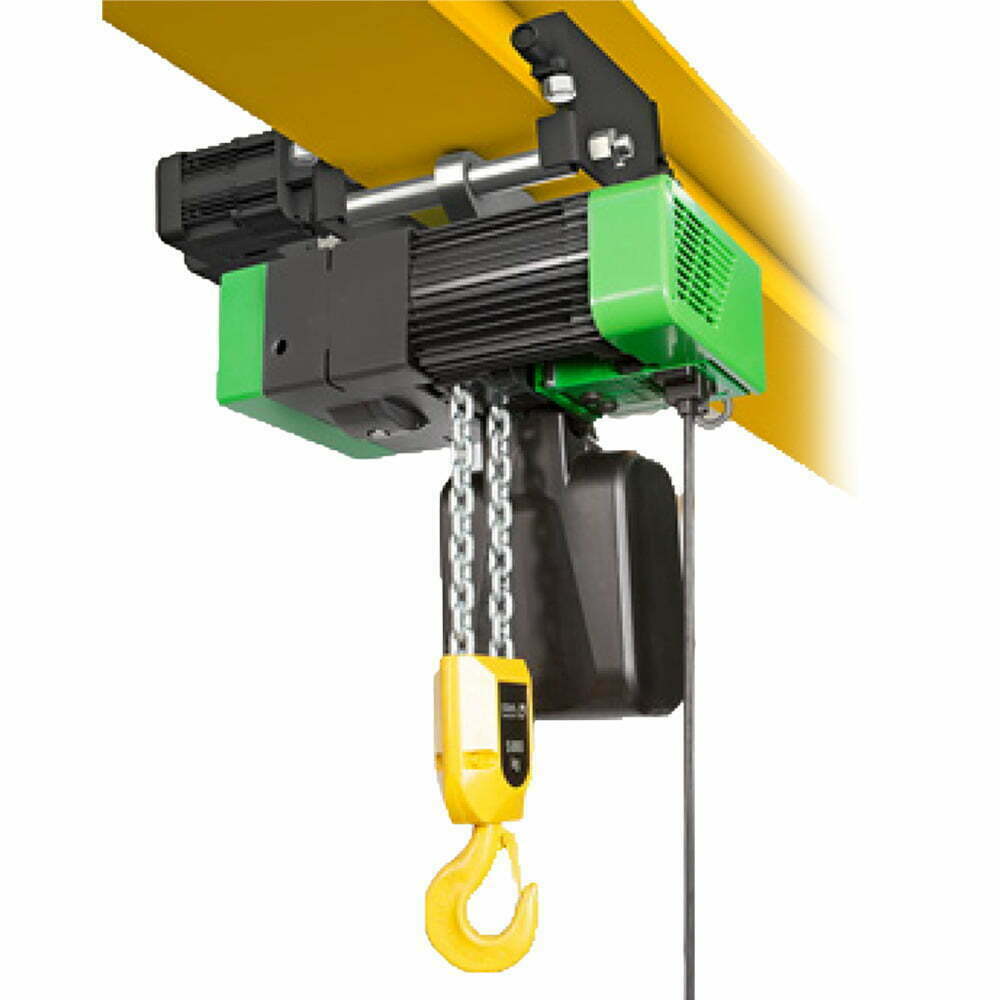

“Standard headroom” electric trolley
Not one millimetre was given away in the design in order to enable large hook paths even at standard headroom.
“Short headroom” electric trolley
The smooth-running electric trolley can also be combined with the ST short headroom chain hoist, reducing the headroom by a further 33 %.

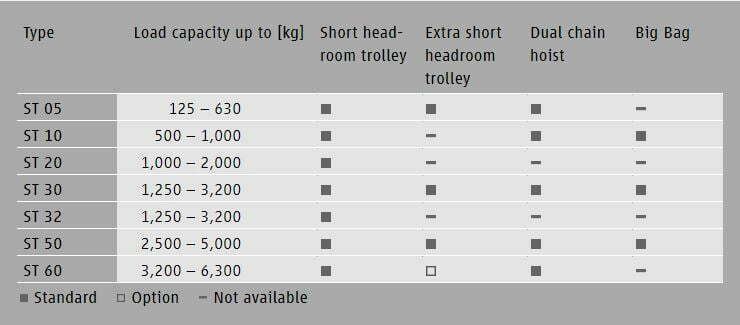

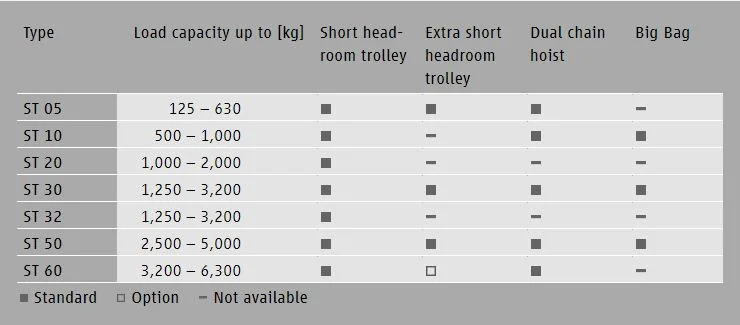

STK short and extra short headroom trolley
The construction of the short headroom trolley itself saves a tremendous amount of space. The body of the chain hoist is mounted at an angle, meaning that no return sheave is required. This reduces the headroom by 33 %. The extra short headroom trolley with its headroom reduced by 60 %, by contrast, achieves maximum hook paths, which is particularly beneficial in extremely low-ceilinged rooms. It fully deserves its name. The extremely short distance from the underside of the beam to the bed of the hook is just 210 mm at a load capacity of 5,000 kg and even just 185 mm at a load capacity of 3,200 kg.
Technology
The ST chain hoist programme boasts superior technology. The low-maintenance components of the modular chain hoist are optimally matched to each other. They guarantee constant performance, long service life and high efficiency.
Options and features
Although they are already first-class in their standard design, you can make the hoists even safer, more economical and more convenient with a range of mechanical, electrical and electronic options. They simultaneously improve performance, prolong service life and make it possible to adapt the hoist individually to specific requirements.
Here are some of the options frequently used.
